AC Motor Rewinds & Repairs

Full Mechanical and Electrical Inspection

With a network of couriers at our disposal, we can collect or you can deliver to our Motor Repair Facility based in the South West. Your AC motor is given full traceability as part of our ISO 9001:20015 Accreditation.

A full mechanical and electrical  inspection is carried out, with results recorded highlighting the required scope of repair to your AC motor.

The AC Motor winding is checked for faults, resistance, and insulation quality. If a fault is found in the stator, it is then rewound to the exact specification using high grade enameled copper wire and impregnated to the correct class of insulating varnish.

The rotor is then checked for condition and balance. Mechanically, the motor dimensions and tolerances are confirmed.

Why Choose Mawdsleys for your Motor Rewind?

We are AC motor rewind experts offering nationwide coverage, our benefits to customers include:

• In house expertise including rewinds team, machine shop, and balancing
• State of the art test facility
• Nationwide coverage from our workshop in the South West
• Quality of repair – all repairs are tested and repaired to the manufacturer’s specification
• All work is recorded on a detailed job card and logged in our digital system. We keep an asset register of serviced equipment
• Repair service includes a one year guarantee
• All rotating items are balanced to G1.0 balance grade
• All bearing journals and housings will be measured to ISO tolerances.
• Your AC motor is given full traceability as part of our  ISO Standard 9001:2015

Common Faults With AC Motors

We often see the same faults with AC motors, below and some of the most common faults with AC motors and how you can identify them.

Our AC Motor Rewind Process

Our AC motor rewind process is as follows:

1. 1. 1. On receipt of your motor, a full mechanical and electrical  inspection is carried out, with results recorded highlighting the required scope of repair to your AC motor
      2. If the motor can’t be removed, our site services team can carry out repairs in situ
      3. We then test the windings for earth & resistance readings

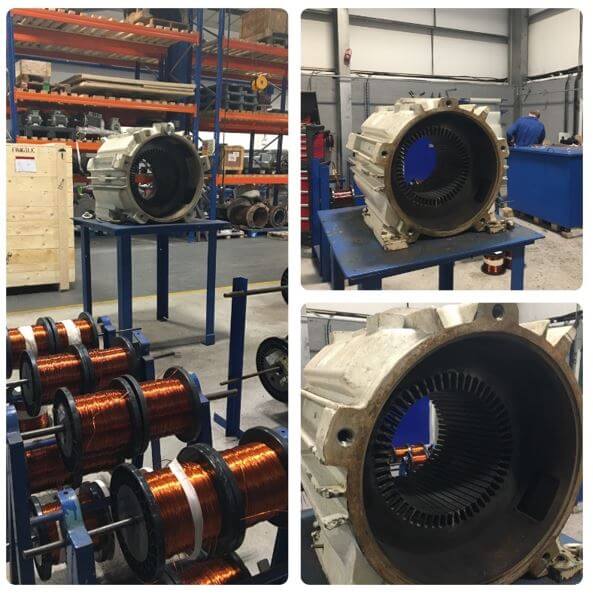

      4. The motor windings are then stripped
      5. Core is cleaned before being re-insulated
      6. Wind coils using the exact specification using high grade enamelled copper wire
      7. Inserts into slot
      8. The coils are connected
      9. Windings are then tested for earth & resistance
      10. impregnated to the correct class of insulating varnish
      11. Windings are then stoved
      12. The motor is then re-assembled with new bearings, O-rings and gaskets
      13. The rotor is then checked for condition and balanced

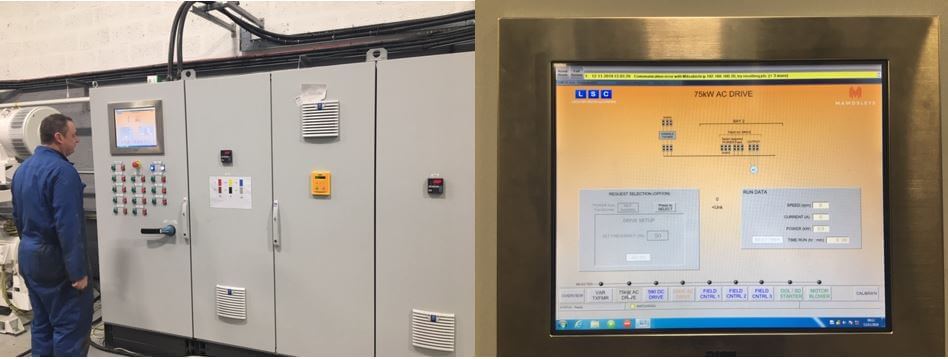

      14. Finally, the motor is testing in our state of the art test facility.

Who We Work With

Working with a varied client base, ranging from small private firms to major blue chip companies, we know how important delivering  quality work to a set budget and agreed lead time is. Sectors we often work with include:

• Facilities Management
• Rail
• Military
• Hospitals
• Schools & Universities
• Ports/Docks & Harbours

AC Motor Rewind Experts

We offer our M&E Services to businesses across the UK, offering  national coverage. To find out how we can help with your AC Motor Repair, please contact us on 0117 9552481 or alternatively you can fill in our Contact us form and we’ll get back to you.
